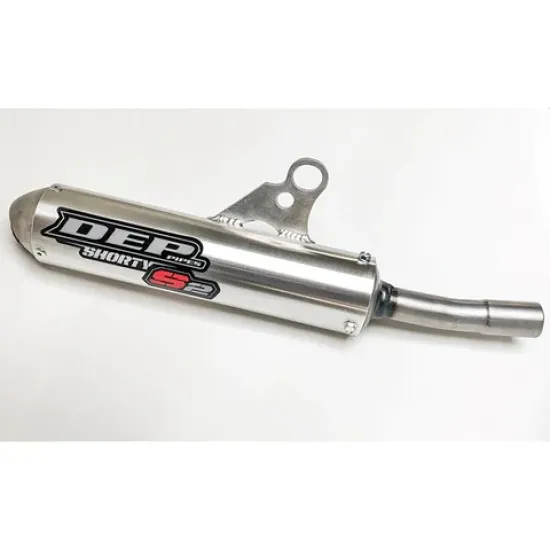

DEP Pipes KTM 2 STROKE KTM125/150 SX 19-20 / HVA125 TC 19-20 TRAX Shorty Silencer – FS** (SILVER) 5060630147778 DEPT2129

We have introduced a new KTM/HVA 125/150 2019/2020 system that caters for bikes using the aftermarket WP Trax rear
shock as well as the OE shock. The new systems give extra clearance under the shock reservoir helping to reduce heat
transferring onto the shock.

Product Information
This silencer is manufactured to be used as a full system, (only compatible
with a DEP front pipe) it comes with a blue anodised, aluminium outer
canister and a mild steel internal perforated core, surrounded with a high
temperature Eglass packing. All silencers have been designed as a
performance enhancing product for optimum power increase, and must be
used with a DEP front pipe. Our silencers are easily repackable.

FS** - Full System - For use with DEP expansion pipe only

WARNING
During use exhaust systems get hot. To avoid danger of burning, do not
remove or touch until adequate cooling time has been allowed.

2 Stroke Silencer Fitting Instructions
Loosen the silencer mounting bolts from the frame and remove your
original silencer from the bike. Install the DEP silencer, making sure it does
not touch the sub-frame before tightening mounting bolts. Retain any
rubber grommets/sleeves from the original silencer and refit on your DEP
silencer, if required. All the exhaust fixing points should be slackened and
then fully tightened allowing all frame mounting points to line up exactly. A
silencer fitted under stress can cause failure or damage to the product.
DEP cannot be held responsible for any incorrectly fitted products. The
fitting to non-original equipment or DEP equipment is the responsibility of
the end user.

2 Stroke Silencer Re-packing Instructions
The performance and low noise efficiency of this silencer will be impaired if
it is not serviced on a regular basis. Remove the bolts or rivets, remove the
end caps, inner core and packing material. Inspect and clean where
necessary. Re-pack the silencer with DEP matt packing. To maintain peak
performance the silencer should be inspected regularly and the packing
material replaced if it has exceeded its serviceable life.
