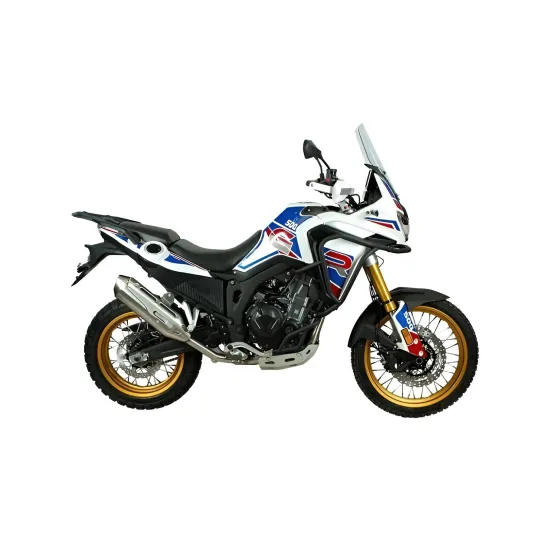

HENGJIAN HJ500-8 18/21
6094.9967
4799.2100
The Hengjian HJ500-8 18/21 is a mid-size adventure motorcycle engineered for long-distance travel on mixed terrain. A 471 cm³ parallel-twin engine, 21-inch front and 18-inch rear off-road wheel combination, generous ground clearance and dual fuel tanks create a capable package for serious touring and gravel-road exploration.
The HJ500-8 18/21 is powered by Hengjian's KE500 engine, a modern liquid-cooled, fuel-injected parallel overhead camshafts and eight valves support efficient breathing, while the 471 cm³ displacement and 180-degree crank layout provide a smooth, tractable power delivery suitable for highway cruising, mountain passes and loose-surface climbs.
A slipper clutch reduces rear-wheel chatter during aggressive downshifts, and a 6-speed gearbox with an international shift pattern (1-N-2-3-4-5-6) keeps the engine in the optimal rev range on both road and -and-splash lubrication and modern ignition hardware are specified to support reliability in demanding conditions.
| Engine type | KE500 parallel-twin, 4-stroke, liquid-cooled, DOHC, 8 valves |
|---|---|
| Displacement | 471 cm³ |
| Bore × stroke | 67.0 × 66.8 mm |
| Maximum power | 35 kW at 8,500 rpm (design standard) |
| Maximum torque | 43 Nm at 7,000 rpm (design standard) |
| Fuel system | Electronic fuel injection |
| Lubrication | Pressure and splash lubrication |
| Clutch | Slipper (assist and slip) clutch |
| Transmission | 6-speed, international shift pattern 1-N-2-3-4-5-6 |
| Ignition | Inductive electronic ignition |
| Starting | Electric start |
The HJ500-8 18/21 is built around a robust steel frame paired with long-travel suspension and off-road-oriented adjustable upside-down fork works with an aluminium swingarm and preload-adjustable rear monoshock to offer around 170 mm of suspension travel at both ends, balancing comfort on the road with control on dirt tracks.
The 21/18 wheel combination, long 1,500 mm wheelbase and generous 230 mm ground clearance give the motorcycle the stance and capability associated with dedicated adventure and enduro 820 mm seat height and adventure-style ergonomics are designed to provide a commanding view and reduced fatigue during full-day rides.
| Frame | Steel chassis designed for adventure and touring use |
|---|---|
| Front suspension | Adjustable upside-down fork, approx. 170 mm travel |
| Rear suspension | Aluminium swingarm with preload-adjustable monoshock, approx. 170 mm travel |
| Front brake | Disc brake system with high-quality calipers and ABS |
| Rear brake | Disc brake with ABS |
| Front tyre | 90/90-21 |
| Rear tyre | 150/70 R18 |
| Wheelbase | 1,500 mm |
| Seat height | 820 mm |
| Minimum ground clearance | 230 mm |
| Overall dimensions (L × W × H) | 2,240 × 945 × 1,425 mm |
| Kerb weight | 205 kg |
| Rated load capacity | 120 kg |
| Fuel tank capacity | 37 L total (20 L front tank + 17 L rear tank) |
The Hengjian HJ500-8 18/21 is positioned as a versatile adventure platform that bridges everyday usability and genuine off-road specification suits riders seeking a multi-role motorcycle for the following scenarios:
| Product Code: | 1046594 |
| Manufacturer ID: | HJ500-8 18/21 |
| Condition | New |
| Stock status | In stock |
