Product overview

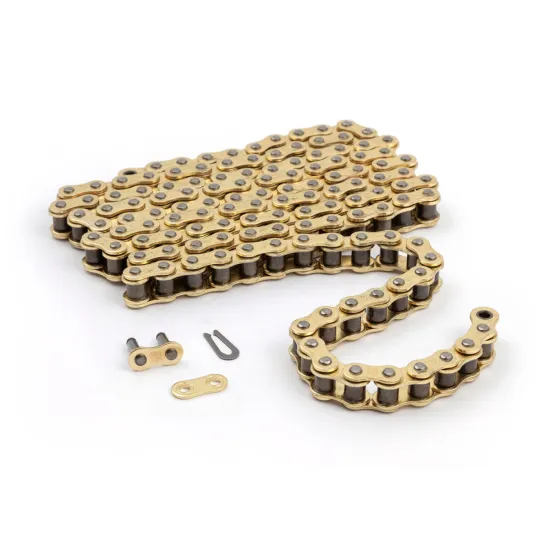

The Tsubaki Road Chain 520 RQ1 96 links (55212520096) is a premium sealed road drive chain from Tsubaki's RQ1 series, developed for high‑performance motorcycles with more than 150 hp and designed to deliver maximum strength with minimal power loss.
With 520 pitch and a compact 96‑link configuration, this chain is ideal wherever a narrow, lightweight final drive is required, such as performance road bikes, track machinery and custom builds that specify a 520‑pitch 96‑link chain.
Key features
- High‑performance RQ1 road chain engineered for powerful modern motorcycles, recommended for engines over 150 hp.
- 520 size (5/8" x 1/4") for reduced rotating mass and improved responsiveness compared with wider 525/530 chains.
- Low‑friction X‑ring sealing keeps factory‑applied lubricant inside the chain while reducing drag versus conventional O‑ring designs, supporting efficient power transfer and long service life.
- Gold‑coloured outer plates with steel‑grey inner links provide enhanced corrosion resistance and a clean, high‑end appearance.
- Factory pre‑stretched to minimise initial elongation after installation, helping the chain settle quickly and maintain correct tension longer.
- Quad‑staked rivet pin construction for high load capacity and durability under extreme torque loads.
- Supplied as a 96‑link chain suitable for applications that require a short 520‑pitch final drive; can be shortened by a professional workshop if fewer links are needed.
Technical specifications
| Manufacturer | Tsubaki |
|---|
| Manufacturer ID | 55212520096 |
|---|
| Series | RQ1 road series, for high‑performance motorcycles |
|---|
| Chain type | Sealed X‑ring drive chain |
|---|
| Pitch / size | 520 (5/8" x 1/4") |
|---|
| Number of links | 96 |
|---|
| Construction | Quad‑staked rivet pins, high‑strength steel plates |
|---|
| Surface finish | Gold‑coloured outer plates, steel‑grey inner plates |
|---|
| Recommended use | High‑performance road motorcycles, particularly applications over 150 hp using 520‑pitch chain |
|---|
| Supplied connector | Rivet‑type master (connecting) link |
|---|
Typical applications
- High‑output road and track motorcycles where a strong yet low‑friction 520‑pitch chain is desired for sharper throttle response.
- Performance‑oriented naked bikes and sportbikes equipped with 520 conversion setups that specify a 96‑link chain length.
- Compact‑wheelbase street and race machines, as well as custom builds, that require a short, premium‑grade final drive chain with gold aesthetics.
